GO/NOGO Gauge Design
Designed and 3D printed GO/NOGO gauges to verify tolerances across automotive and furniture extrusions.
What?
Multiple customers required dimensional verification of critical features on aluminum extrusion profiles before shipment
Manual measurement with calipers was time consuming and prone to operator variation
GO/NOGO gauges were needed to standardize and speed up the inspection process
How?
Reviewed customer drawings, referencing GD&T to identify critical features and tolerance requirements for each profile

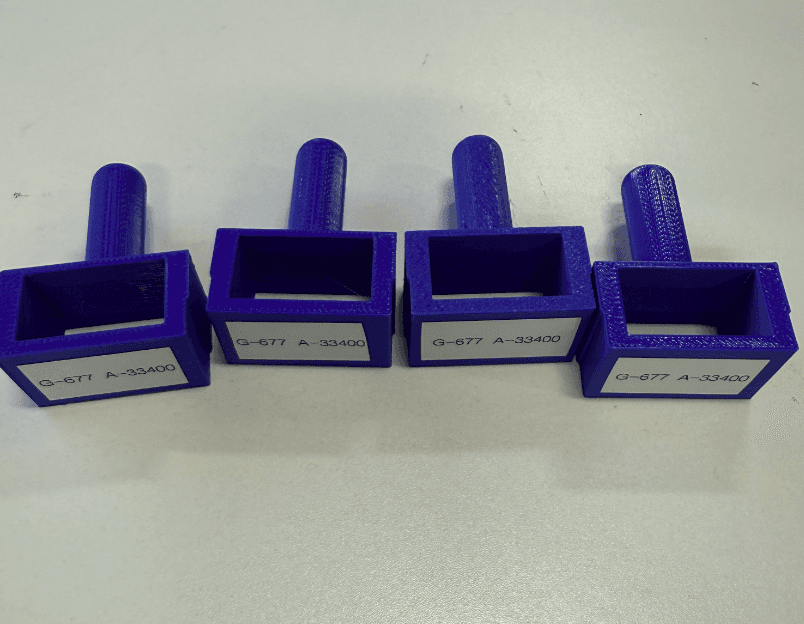

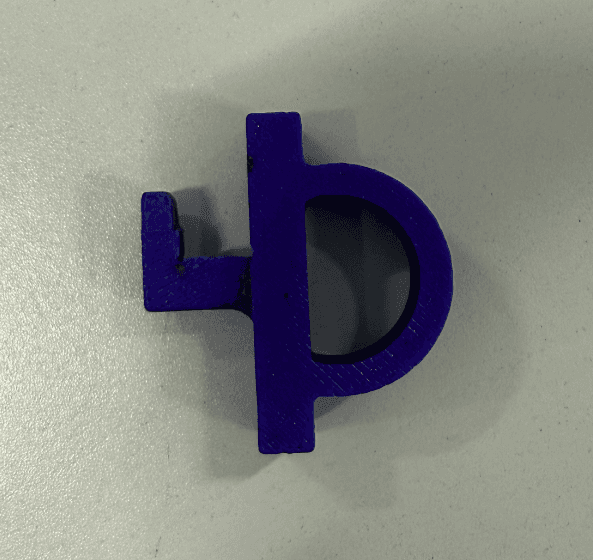

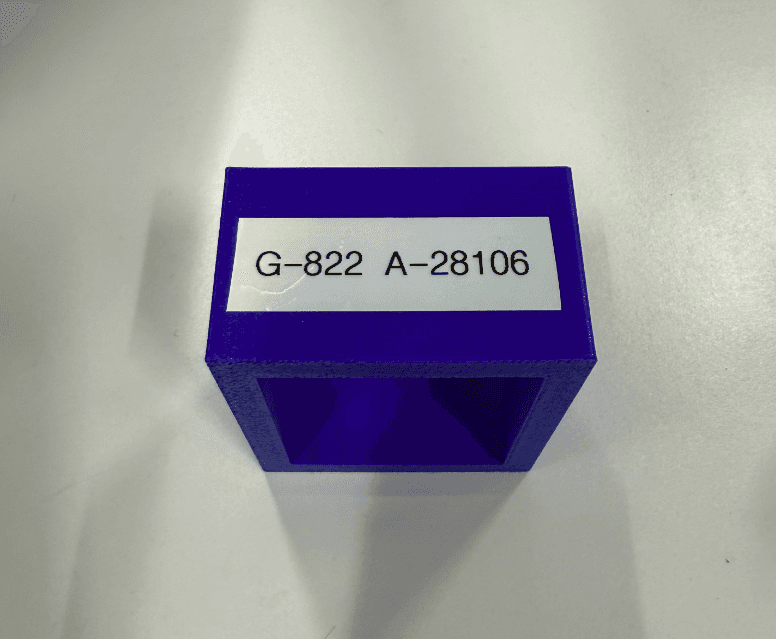

Designed 3 GO/NOGO gauges across automotive and lighting fixture profiles (Specific names cannot be shared)

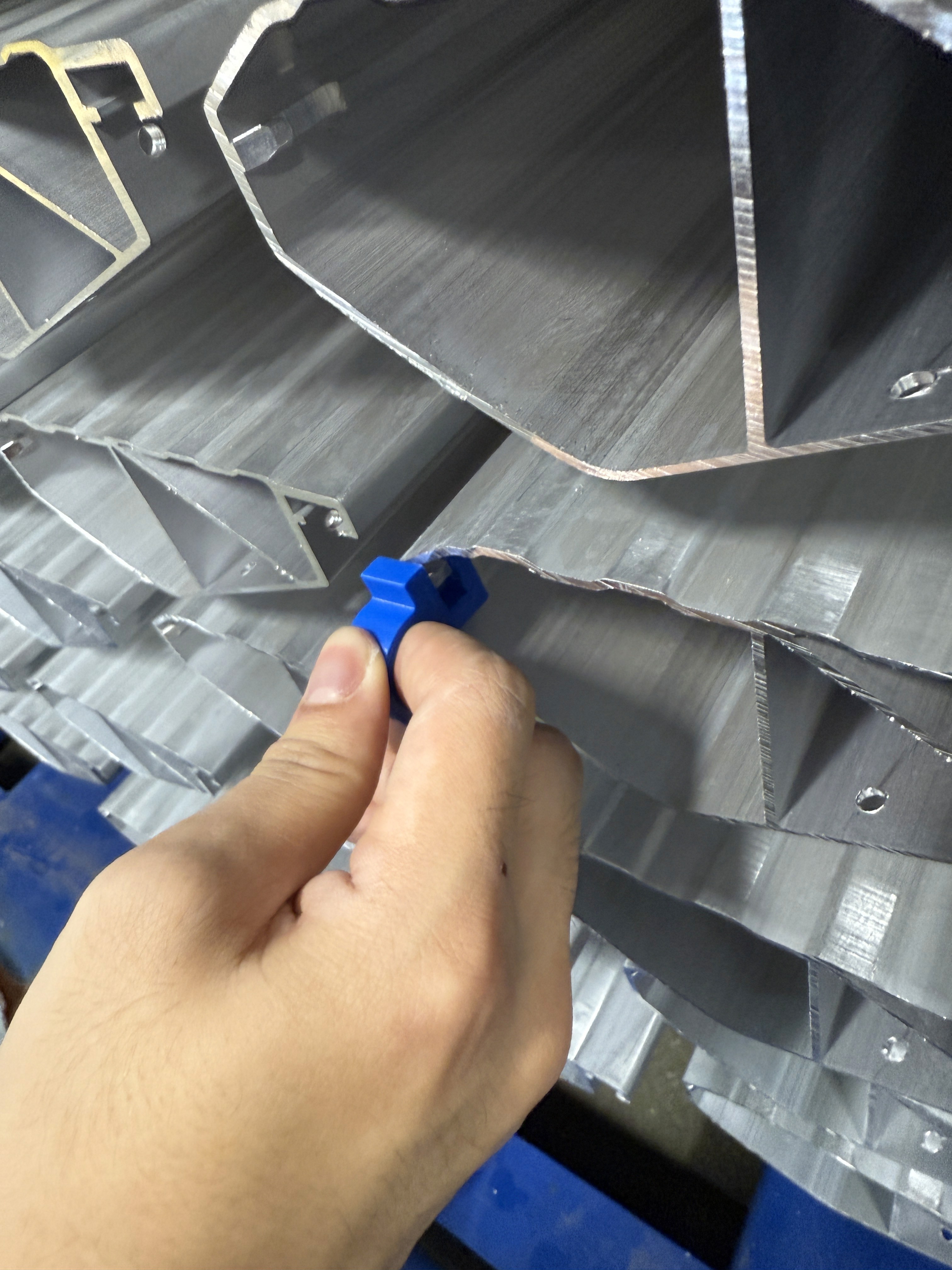

3D printed the gauges in-house and verified dimensional accuracy against a calibrated reference part before deploying on the production floor
Results?
Reduced inspection time by 40% across affected part numbers and standardized the inspection process
